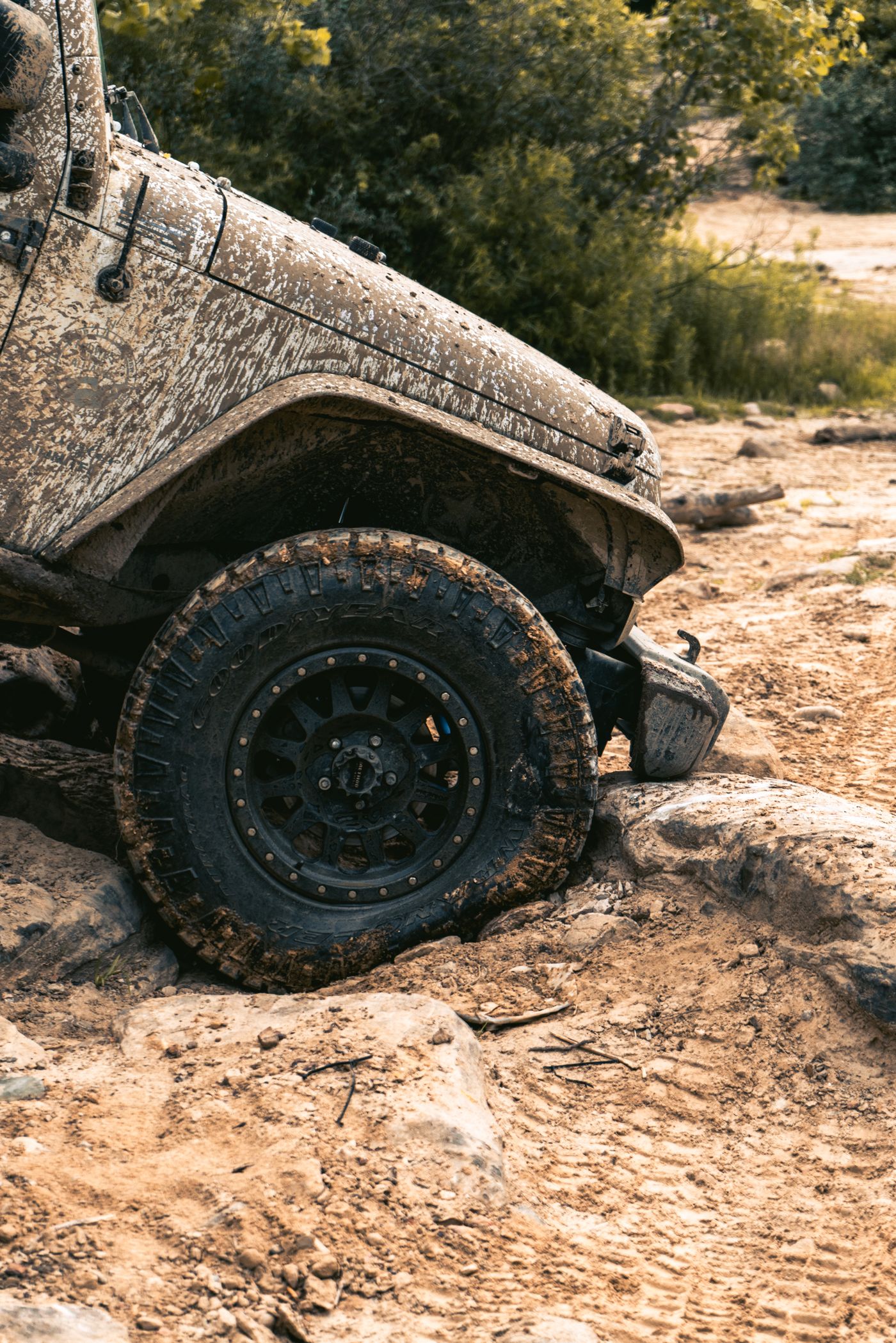

The front wheel of a mud-covered off-road vehicle on rocky ground. Photo via Pexels.
Ground clearance is the specification everyone quotes and the one that explains the least. Three angles describe what actually happens when terrain meets a vehicle.
The three angles
Approach angle — the steepest slope a vehicle can drive onto before the front bumper contacts it. Governed by front overhang and bumper height.
Departure angle — the same at the rear, governed by rear overhang. This is what catches a long-bed truck coming off a ledge.
Breakover angle — the sharpest crest a vehicle can straddle before the underside touches. Governed by wheelbase and clearance at the middle of the vehicle. A long wheelbase makes this worse regardless of how tall the vehicle is.
Why clearance alone misleads
Ground clearance is usually measured at the lowest fixed point, often the differential. It tells you about a rock directly under the axle, and nothing about a crest, a ledge, or a steep entry.
Two vehicles with identical clearance can behave completely differently if one has short overhangs and a short wheelbase and the other does not.
What modifications actually change
A lift raises the body and frame but does not lift the axles or differentials, so the clearance under the axle is unchanged. Lifting improves breakover and the angles somewhat, and improves suspension travel clearance.
Larger tires are what raise the axle centerline and therefore genuinely increase clearance under the differential — at the cost of gearing, braking effort and speedometer accuracy. Changing tire size also changes the load and inflation figures the vehicle was certified with, which is why the placard values stop applying once you leave the original size.
Aftermarket bumpers are frequently about angles rather than protection: a shorter, higher bumper improves approach angle directly.
Reading terrain by angle
The habit worth developing is looking at an obstacle and asking which angle it tests. A steep bank entry is an approach problem. Coming off a ledge is a departure problem. A rounded crest is a breakover problem.
That framing turns “will I make it” into a question with a mechanical answer, and it is usually visible from outside the vehicle before you commit.
Why the numbers are measured at all
Manufacturers publish these angles because they describe the vehicle as built and loaded to a stated condition. Both parts matter. A truck measured empty has different angles once it carries fuel, passengers and gear, because the suspension compresses and every clearance figure falls with it.
Rear overhang loaded with weight behind the axle drops the departure angle furthest, which is why a hitch carrier or a slide-in camper changes what a vehicle can do at the bottom of a descent.
The trade in raising a vehicle
Larger tires raise the axle centerline and genuinely increase clearance under the differential, but they change the vehicle’s certified configuration. The load and inflation figures on the door placard apply to the tire size listed on it, and stop applying the moment you fit something else. Gearing, braking effort and speedometer accuracy all shift with them.
A body lift or suspension lift improves breakover and the entry angles without touching axle clearance at all. Knowing which problem you actually have decides which change is worth making.
Reading terrain against the numbers
The habit worth building is naming the angle before committing. A steep bank entry is an approach problem. Coming off a ledge is departure. A rounded crest is breakover. Each has a different answer — a different line, a different approach angle to the obstacle, or a spotter — and all three are visible from outside the vehicle before you commit.
Where the answer is to build a bypass around the obstacle instead, that is the point at which the route starts widening, and going over rather than around is the difference between a route staying designated and not.
